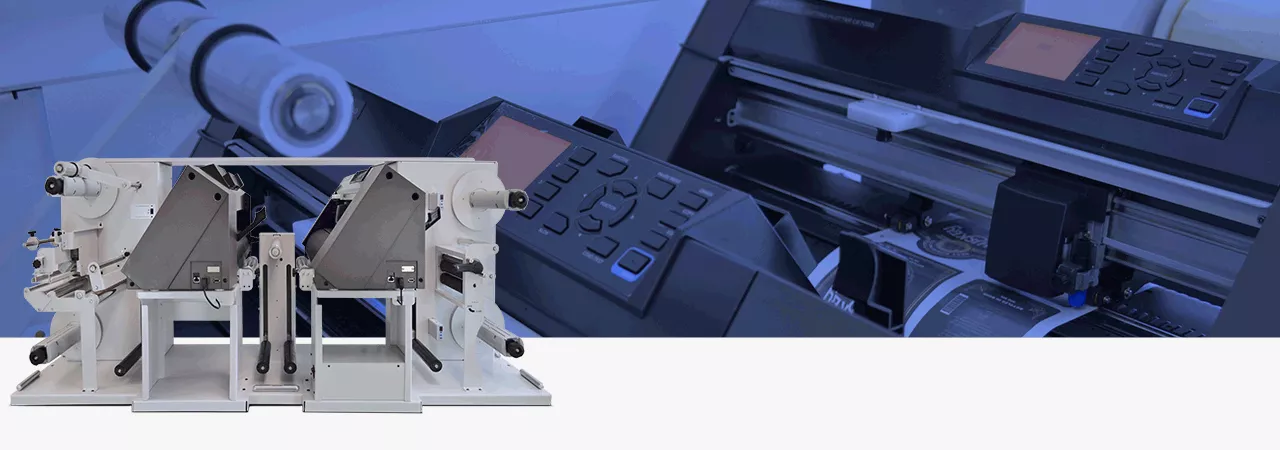

Blade label finisher two times faster.

blade label finishing systems with double plotter

FEATURES


Say goodbye to limitations and hello to a new level of efficiency and productivity.
The finishing system series powered by double plotters is the ideal solution for those who choose the knife cutting technology with faster delivery for their jobs.

These systems designed with a desktop and short footprint look, allow you to cut different types of paper and plastic films in any shape, size and quantity with a very limited waste of media during the loading process allowing the opportunity to run also very short run jobs.

Being a digital workflow, no extra costs for die plates are involved.

Being a digital workflow, no extra costs for die plates are involved.
The main reason to own a label finishing system is to acquire the independence and flexibility to run label productions on demand with the freedom to change the shape, size and quantity for each single job every time.

Blank labels always on TOP
Both finishers can also run in blank label mode, working synchronized and keeping the required gap constant.
Through the software it is possible to set each single parameter in just a few clicks.


Brochure | User Manual SCR35X2 |User Manual VRG22X2 |

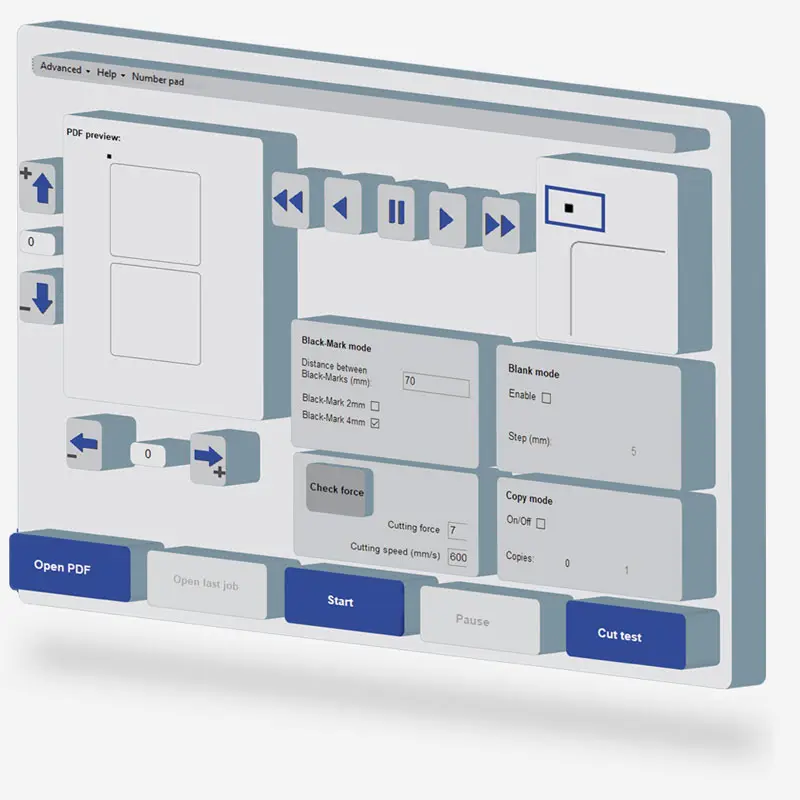

  • cutting-manager
  • Cutting manager software

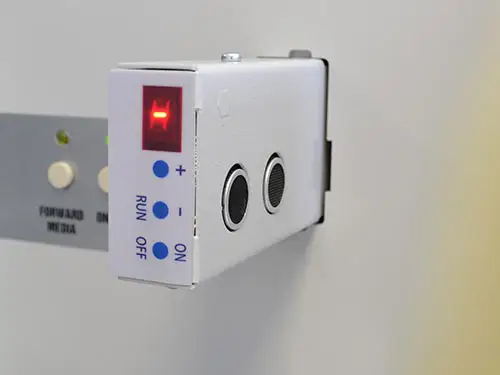

    The cutting position is synchronized by using an intuitive software and CCD cameras to detect the single registration mark inside each layout, which can then be adjusted through the offset settings.

    Importing a PDF cutting file to begin this process simplifies the workflow with an added benefit of tracking each completed job and viewing the daily working reports that are auto generated by the system.



  • Knives management will not be a nightmare
  • Knives management will not be a nightmare

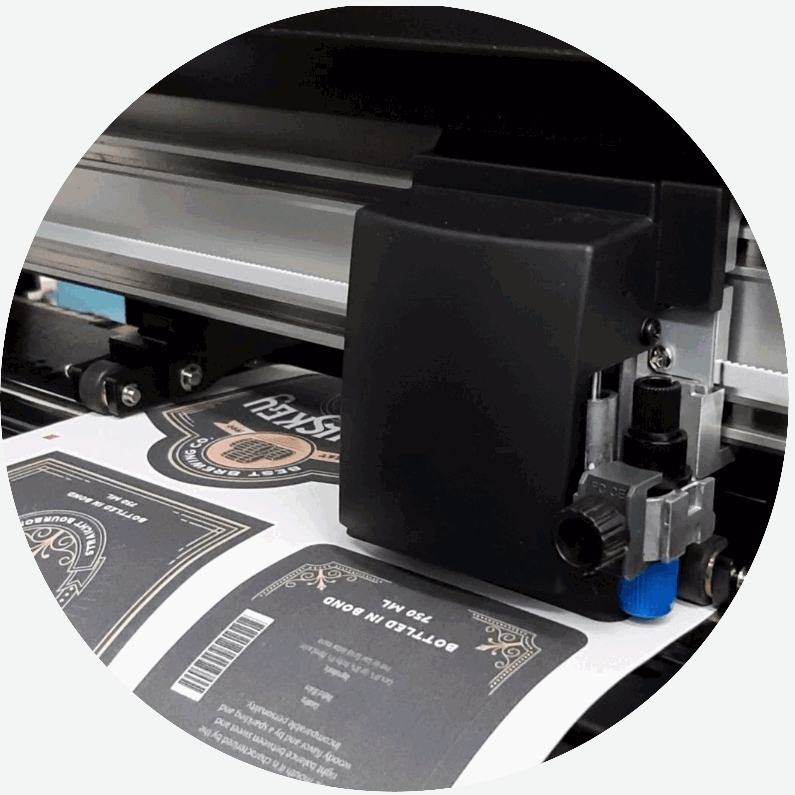

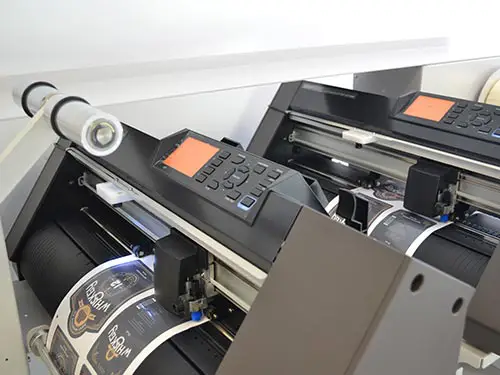

    With DPR systems, both plotters will always be running for any type of application.

    This means that the wear on the cutting knives will have close expiration date and it provides consistent cutting quality along the entire job.

    On the two heads equipment in several conditions it is mandatory to use one head only, so the usage of each head is different and the knives wear is completely different.

    As consequence, it happens frequently during the jobs using the two heads to obtain different cutting qualities because the knives run out with different timing, it means a waste of time for the operator to supervision the job and waste media when the cutting result is not consistent.



WHY SELECT THE DOUBLE PLOTTER FINISHERS INSTEAD OF THE DOUBLE HEADS SYSTEMS
THE LAYOUT CONTAINS DIFFERENT SHAPES
THE LAYOUT CONTAINS DIFFERENT SIZES
THE WIDTH OF LABEL REACHES THE MAXIMUM MEDIA WIDTH
UP TO 8 M/MIN (depending on job settings)
BLANK LABELS ALWAYS ON TOP

For all the above scenarios the two heads on the double plotter are always in action while on the double head system, one head must be disabled.



F E A T U R E S
  VRG22X2 SCR35X2
Input / Output Roll Diameter 200mm (7.87”) 250mm (9.84”)
Minimum Web Width 110mm (4.34”) 110mm (4.34”)
Maximum Web Width 225mm (8.86”) 350mm (13.77”)
Maximum Cutting Width 200mm (7.87”) 340mm (13”)

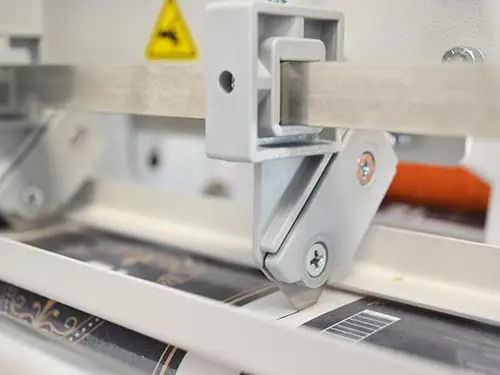

Minimum Slitting Width 19mm (0.75”)
Minimum Label Length 10mm (0.39”)
Maximum Label Length 350mm (13.77”) with limitations
Lamination Module YES (optional) YES
Number of Slitting Blades up to 8 up to 13
Maximum Media Thickness 0.25mm (10 mil)
Maximum Cutting Speed 600mm/s (24 in/s) in all directions
Roll Core Size 76mm (3”)
Warranty One Year Parts and Labor. Usage Limitation may apply


VIDEO

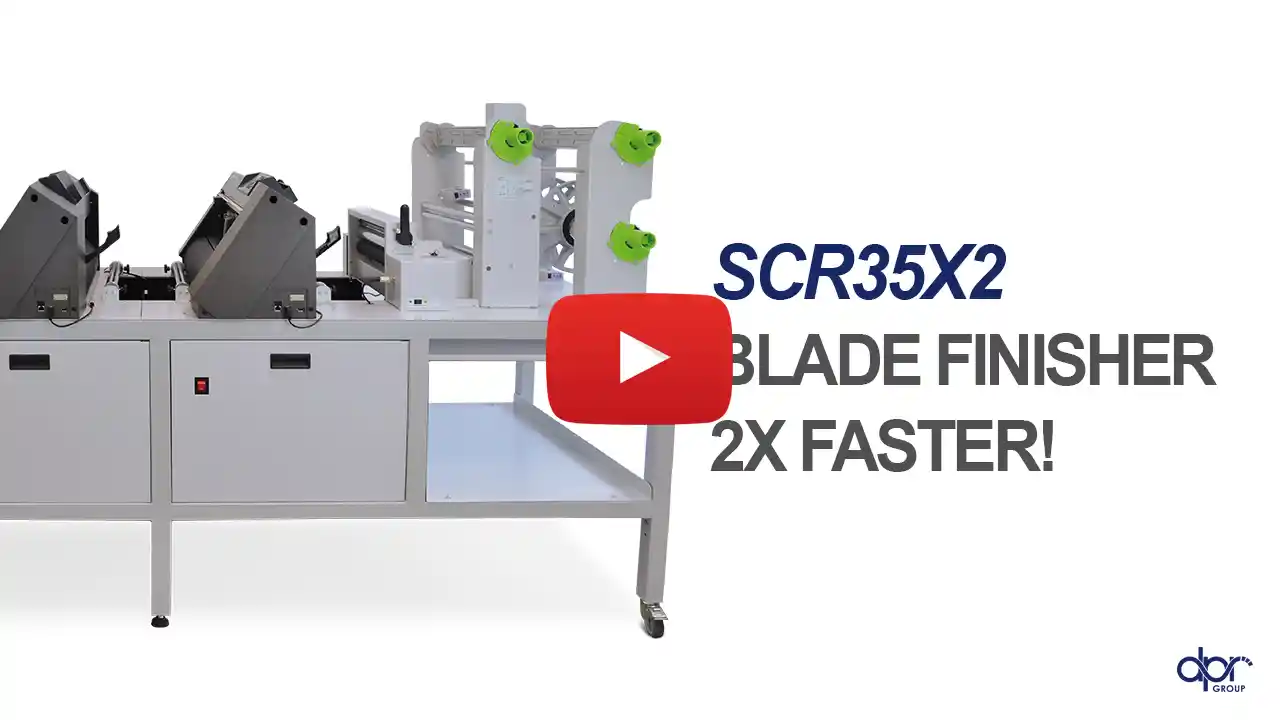

video preview

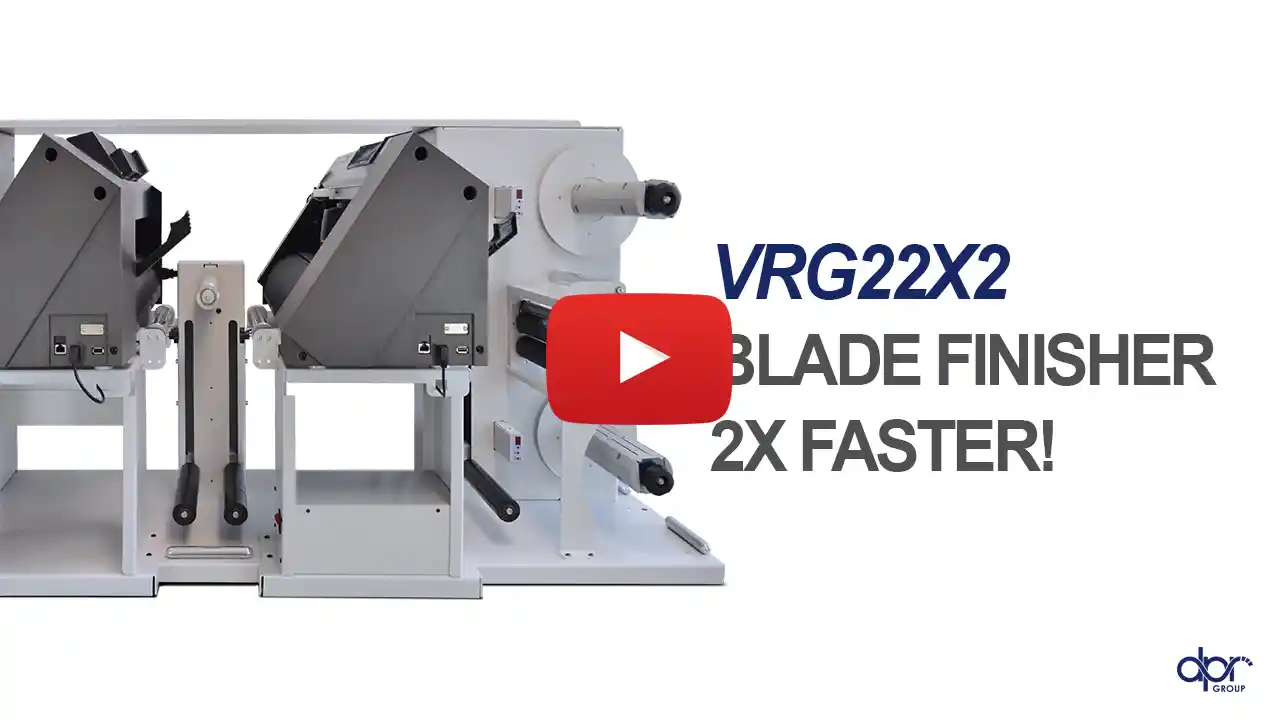

video preview


GALLERY

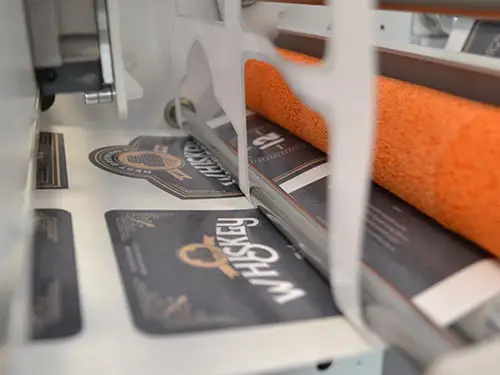

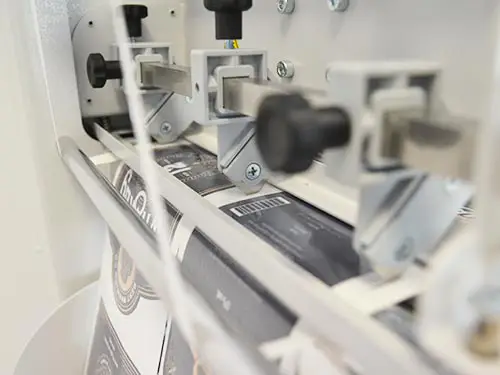

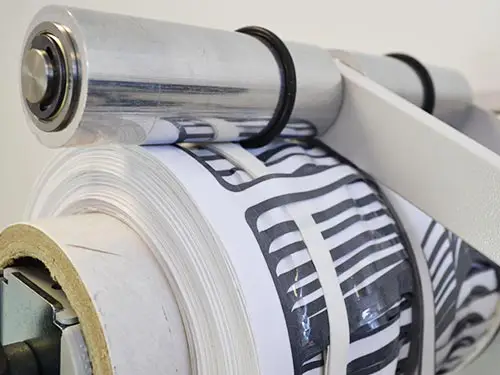

  • label finishing system with double plotter detail
