FEATURES


The unwinder and rewinder for Epson C7500 printers are used to manage rolls of media up to 127mm (5") having an outside diameter up to 250mm (9.84"). The users can select among the adjustable core holder 40mm - 118mm (1.57" - 4.64") and the 76mm (3") fixed.

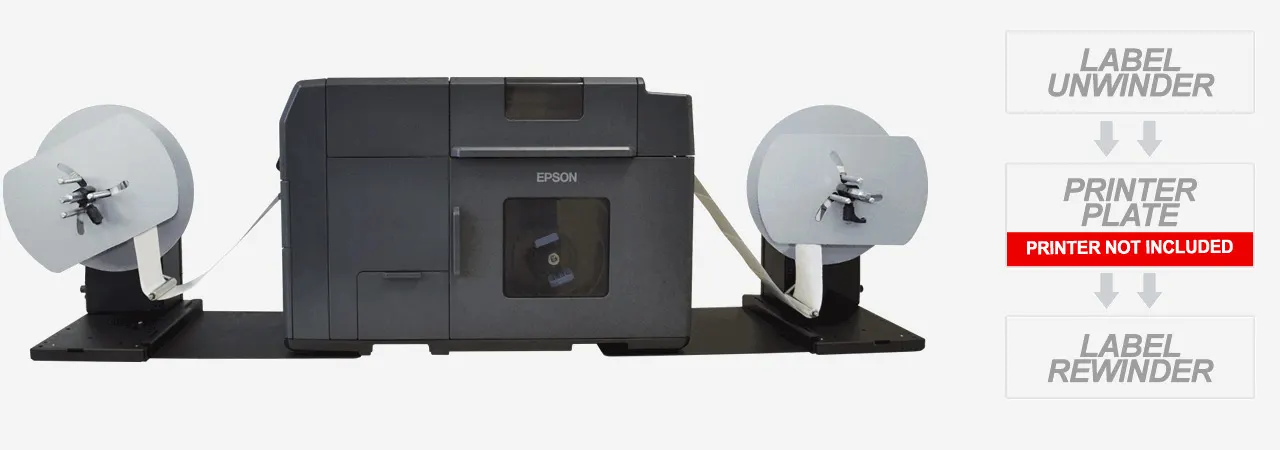

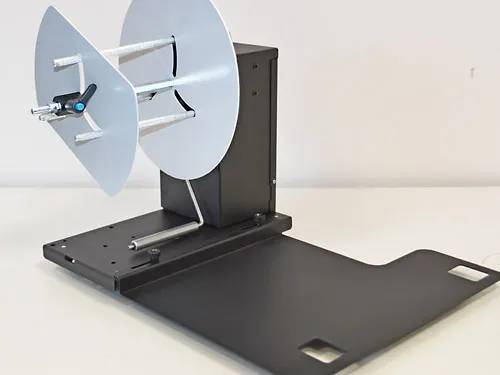

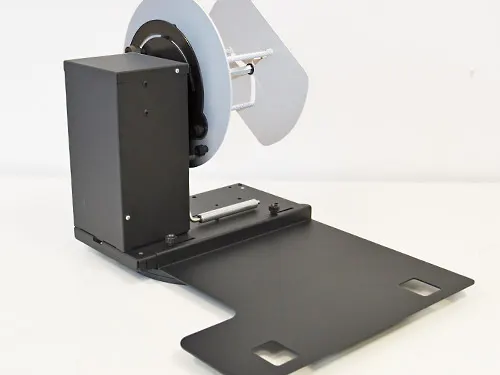

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

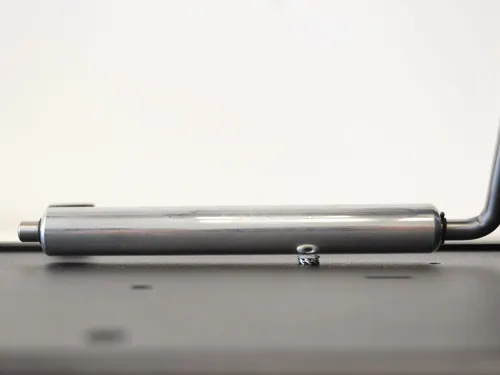

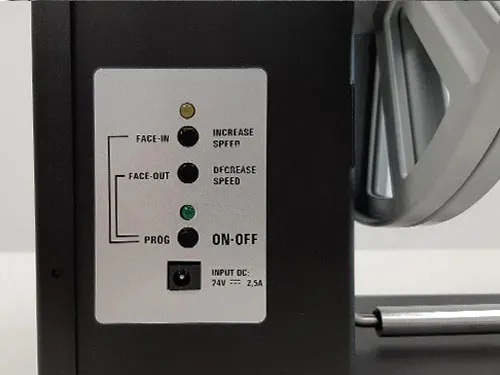

An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.


Brochure

M O D E L S

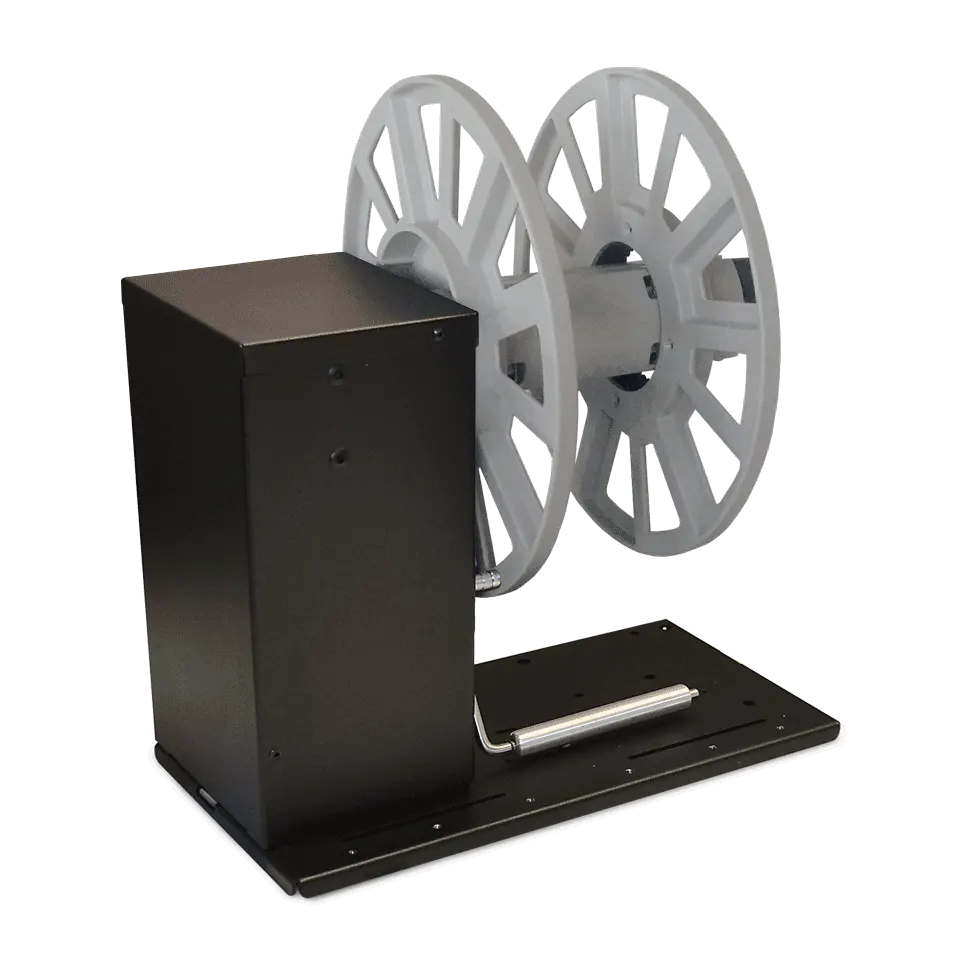

ASS1111-S0 ASD1111-S0 ASS1114-S0 ASD1114-S0
ASS1111-S0 ASD1111-S0 ASS1114-S0 ASD1114-S0

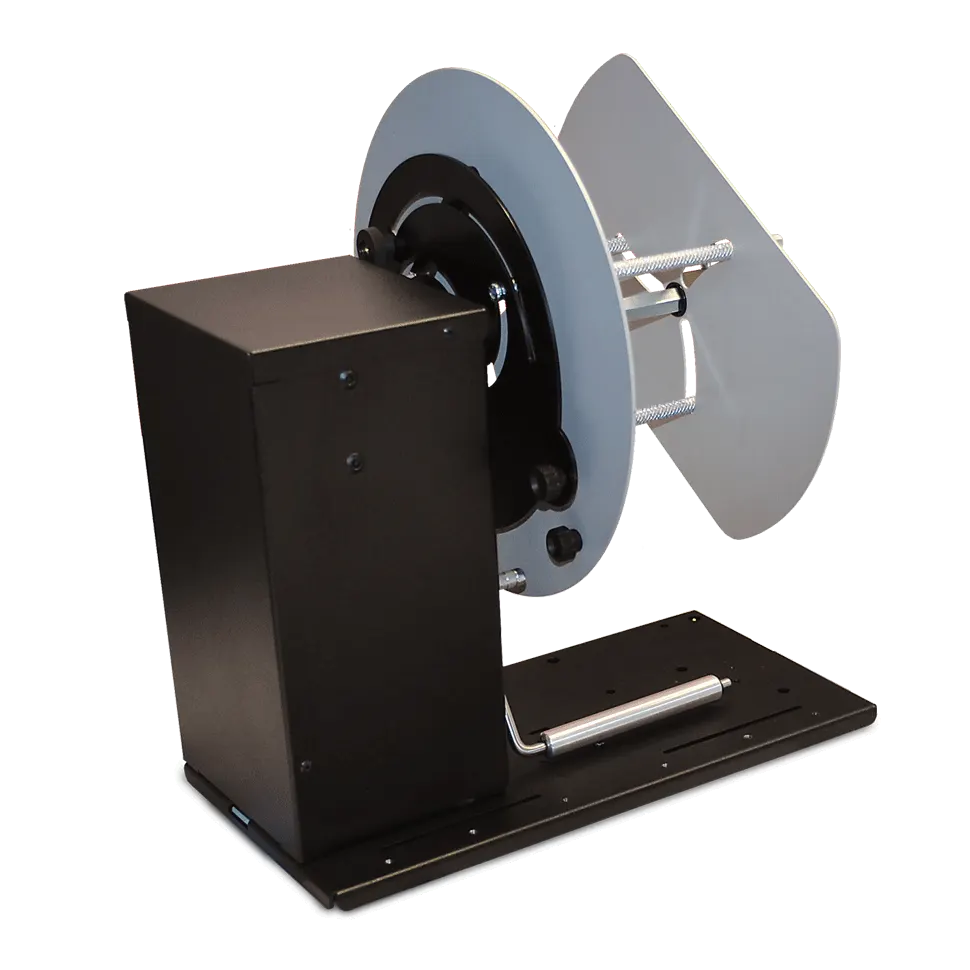

Label unwinder with
40mm - 118mm (1.57" - 4.64")
adjustable core holder

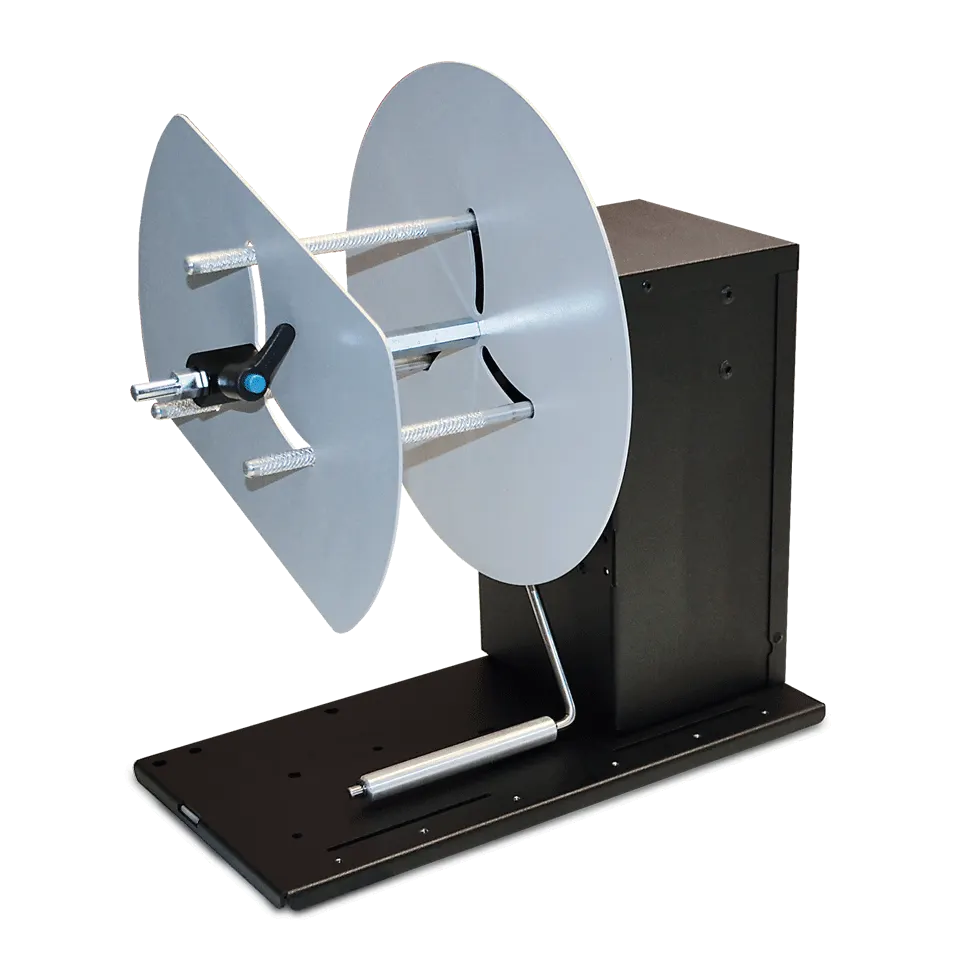

Label rewinder with
40mm - 118mm (1.57" - 4.64")
adjustable core holder
Label unwinder with
76mm (3") fixed core holder

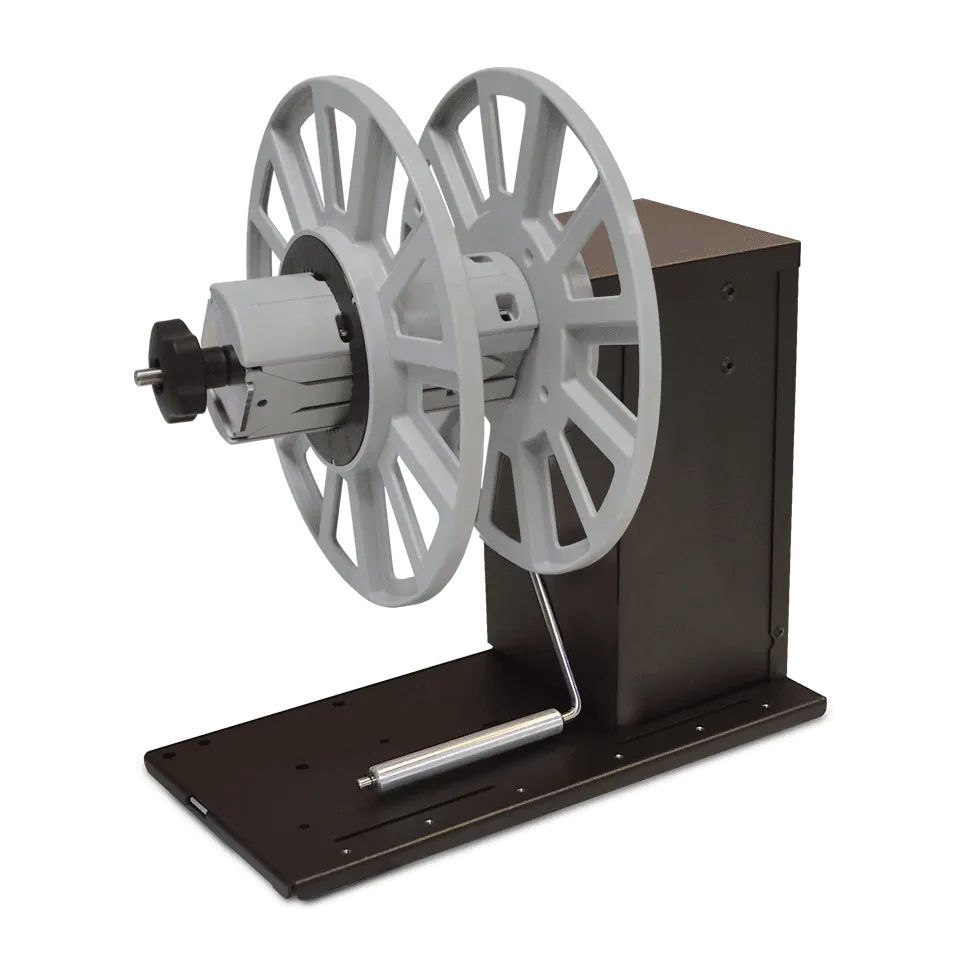

Label rewinder with
76mm (3") fixed core holder

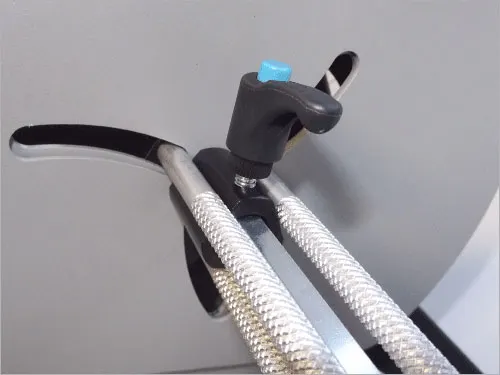

CORE HOLDER
40-118mm CORE HOLDER 3" FIXED CORE HOLDER


SIZE
MODELS LENGTH WIDTH HEIGHT
All models
(second plate included)
43cm (19.93") 35cm (13.78") 36cm (14.17")

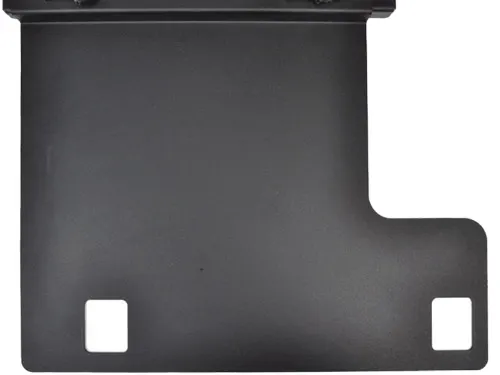

Printer Plate
(EPS75PL-UW / EPS75PL-RW)
30cm (11.81") 40cm (15.74") /

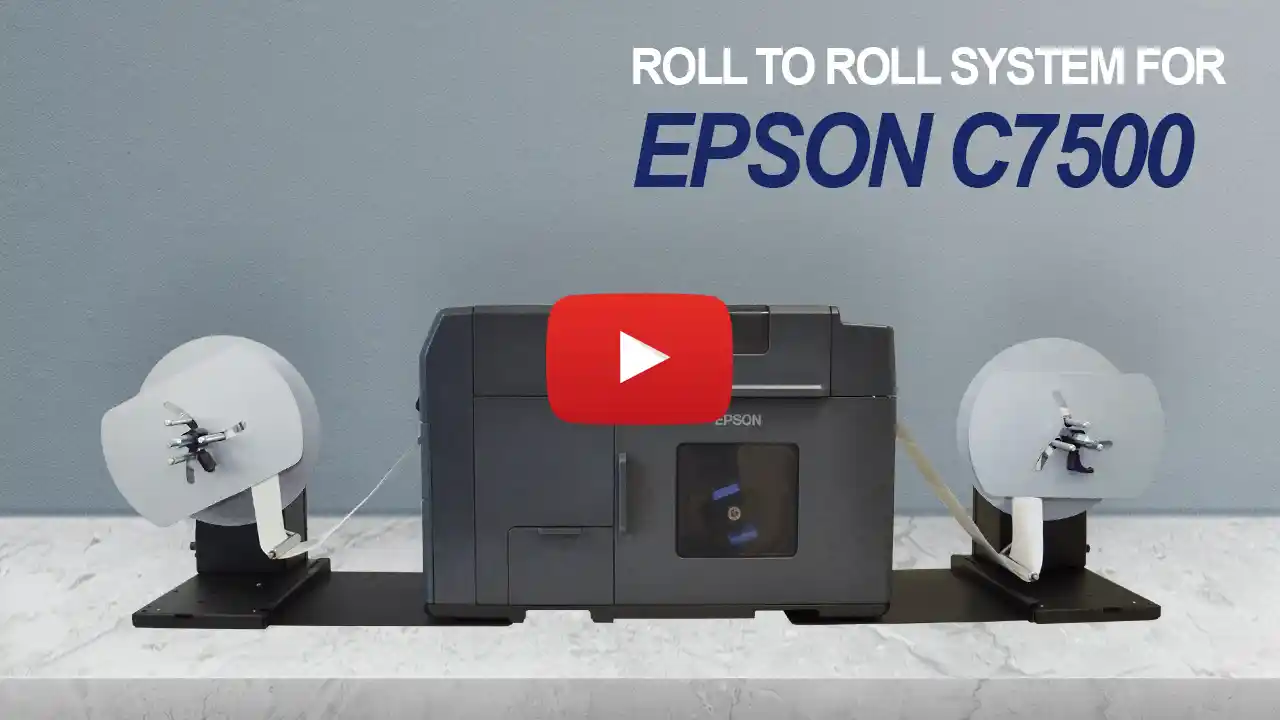

VIDEO
