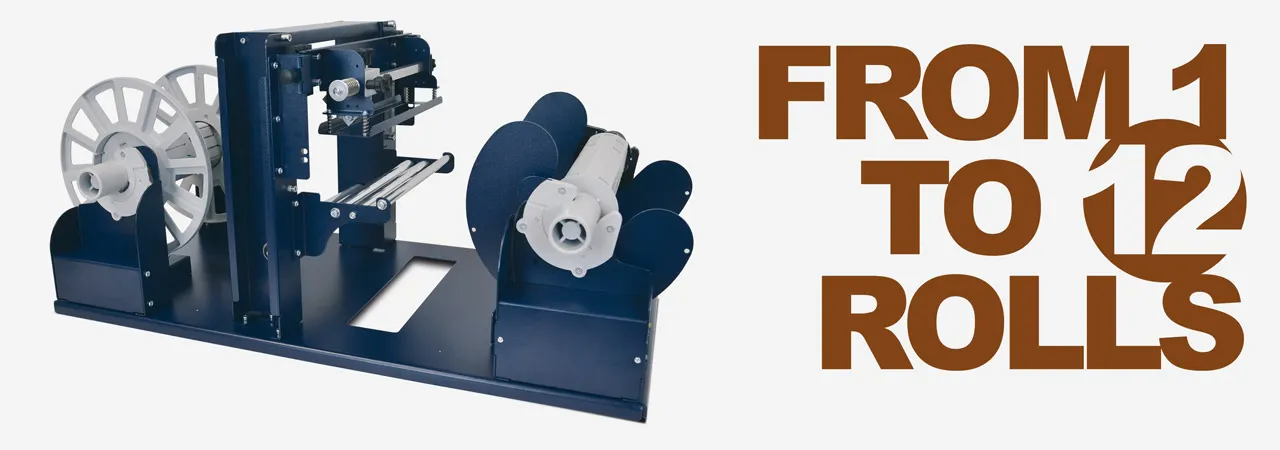

Longitudinal Label Slitter

Longitudinal Label Slitter

FEATURES


The longitudinal label slitter satisfies the present-day necessity to make the most of the print area with the possibility to obtain more rows of labels from the same roll, and then split it through the use of the slitter.

The cutting operations are done by a common cutter blade that is located in an apposite blade holder. The slitter has an external auto-switching 100/240V corrente continua power supply and an electronic circuit controls all its functions.

The label slitter, equipped with two 76mm (3") fixed core holder is able to work rolls with a diameter of 250mm (10"). The maximum width of the roll is 240mm (9.45") and it is possible to obtain rows of labels not narrower than 19mm (0.75").



Brochure | User Manual |

SIZE
MODEL LENGTH WIDTH HEIGHT
MCH100SLT25 89cm (35.03") 50cm (19.68") 40cm (15.75")

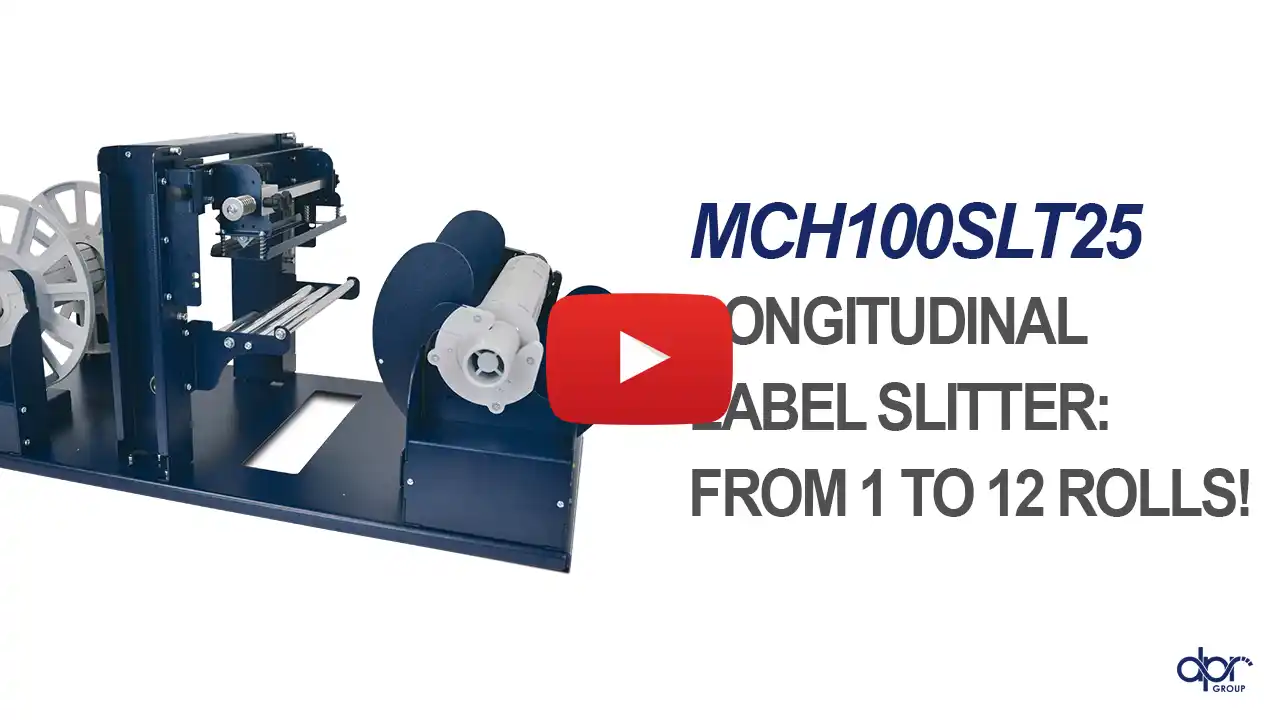

VIDEO




GALLERY

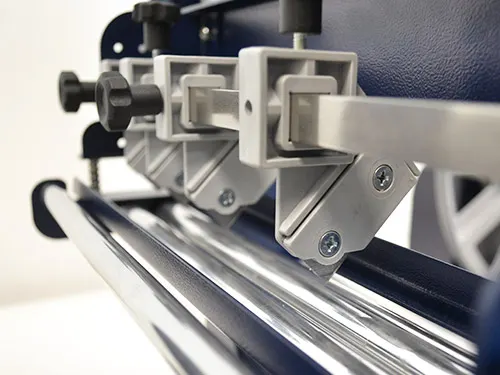

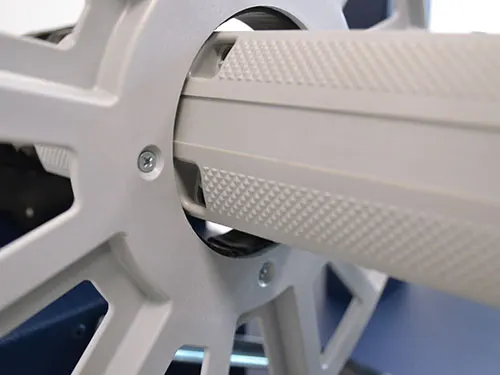

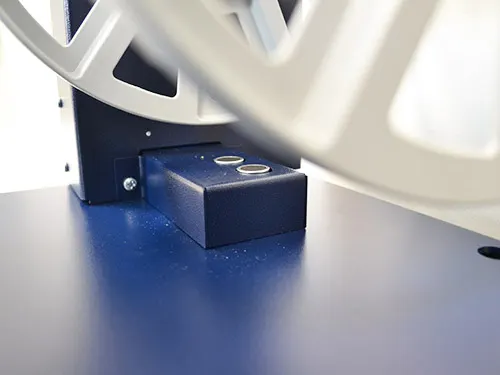

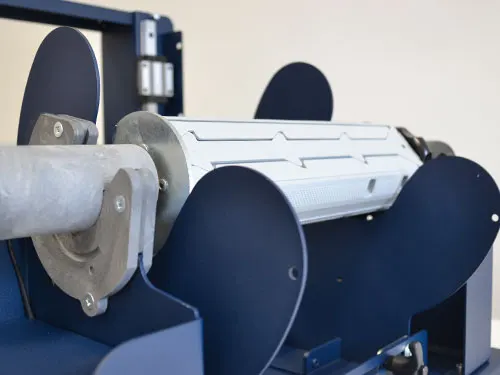

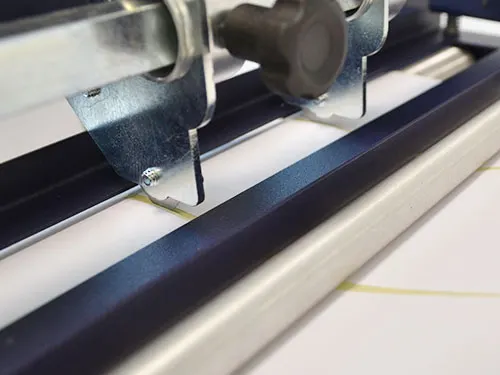

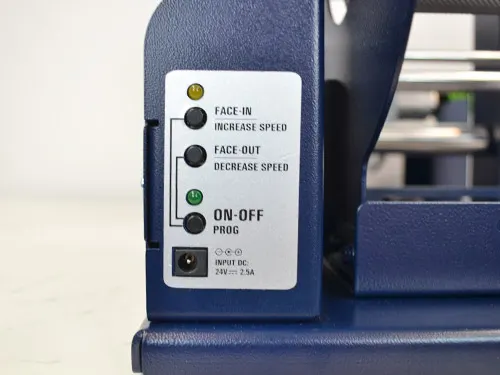

  • longitudinal label slitter detail
  • longitudinal label slitter detail
  • longitudinal label slitter detail
  • longitudinal label slitter detail
  • longitudinal label slitter detail
  • longitudinal label slitter detail
