SCORPIO SERIES - digital finisher systems
- 4.7
FEATURES
The Scorpio Series are all-in-one systems that unwind, laminate for labels added durability (SCR22PL and SCR35PL only), digitally die-cut, remove the excess label material around each die-cut shape, slit, and rewind offering you everything to professionally cut and finish labels.

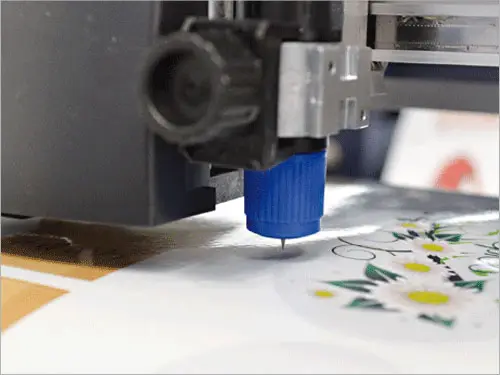

All systems provide a very accurate label finishing solution using cutting plotter technology.
This allows you to cut different types of material and shapes on the fly without the added cost of dies.
The units are equipped with a cutter management tool that works together with a camera forming an integrated optical black-mark registration system providing cutting speed optimization and avoiding synchronization issues.
All features that turn into full flexibility, limitless variations in label design and smooth workflow.
Producing full bleed labels will no longer be a nightmare.
Print over-bleed artworks and enjoy the quality provided by our Digital Label Finishing System!
The Scorpio Series are digital label finishers truly meant to meet the on-demand short run label finishing solution for use with digital color label printers and presses.
Some benefits of using the Scorpio Series:
- Short run label production in-house means reducing inventory requirements and costs
- Producing full bleed labels will no longer be a nightmare
- Laminating for labels added durability (no need for special media)
- No need to order pre-die cut label rolls
- No need for ultra-precise label margin adjustment when printing in full bleed
- No need to set up a minimum gap between labels when printing in full bleed (saving on media)
Scorpio Series is available in four different models:

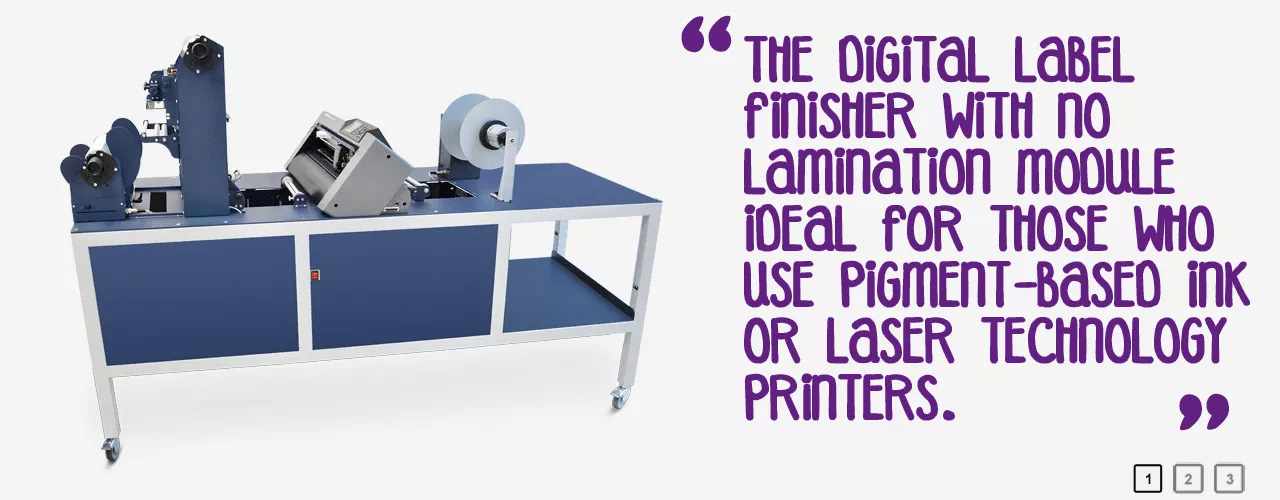

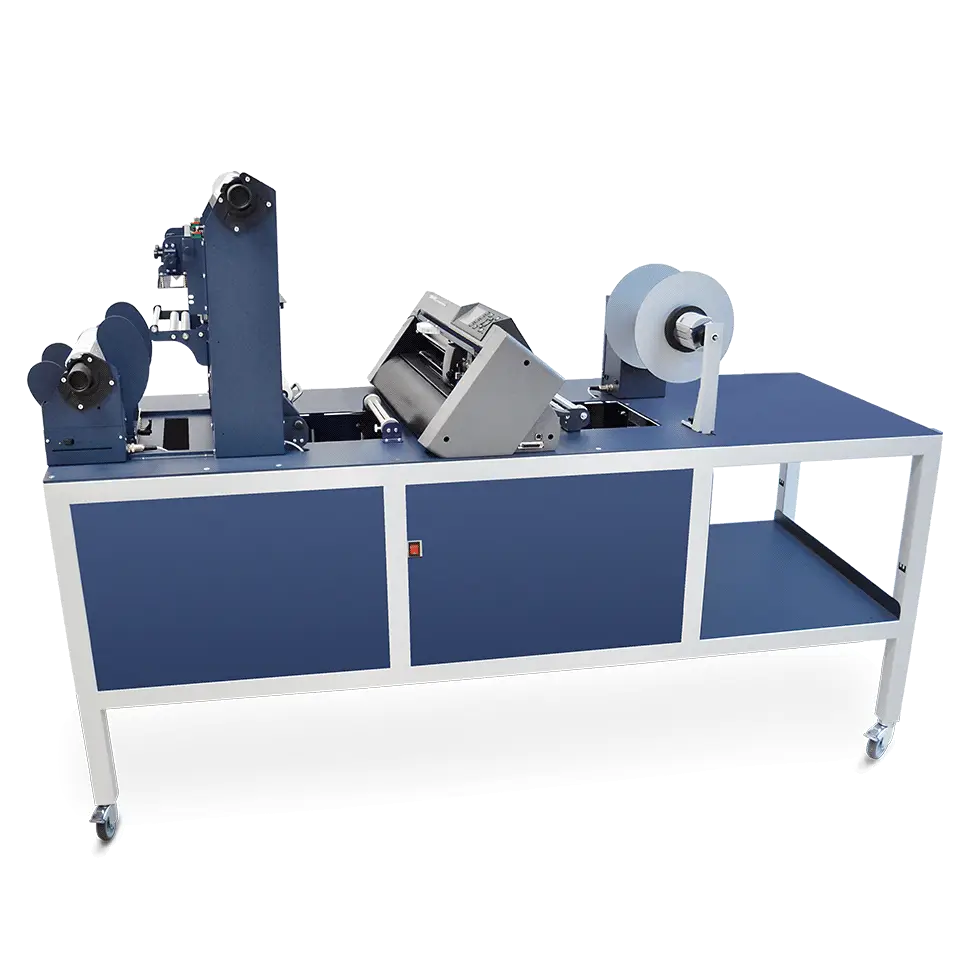

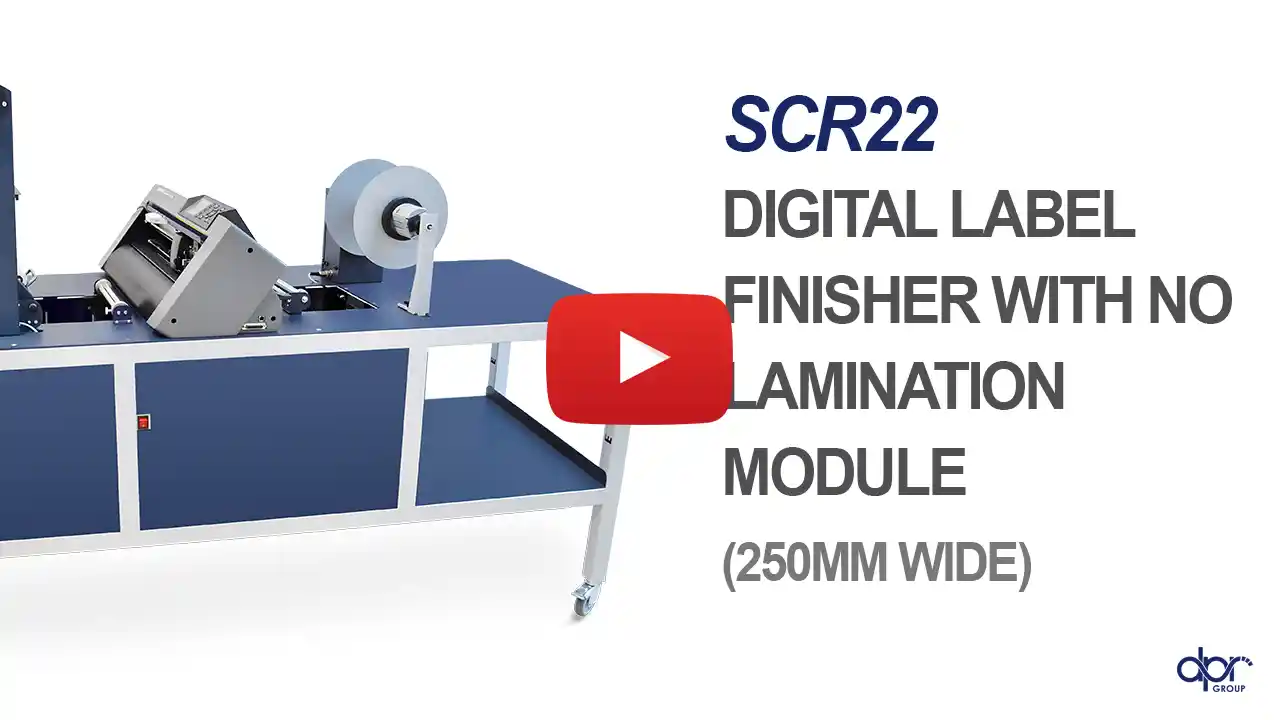

- SCR22 : The digital label finisher with no lamination module ideal for those who use pigment-based ink / laser technology printers (water and fade resistant).

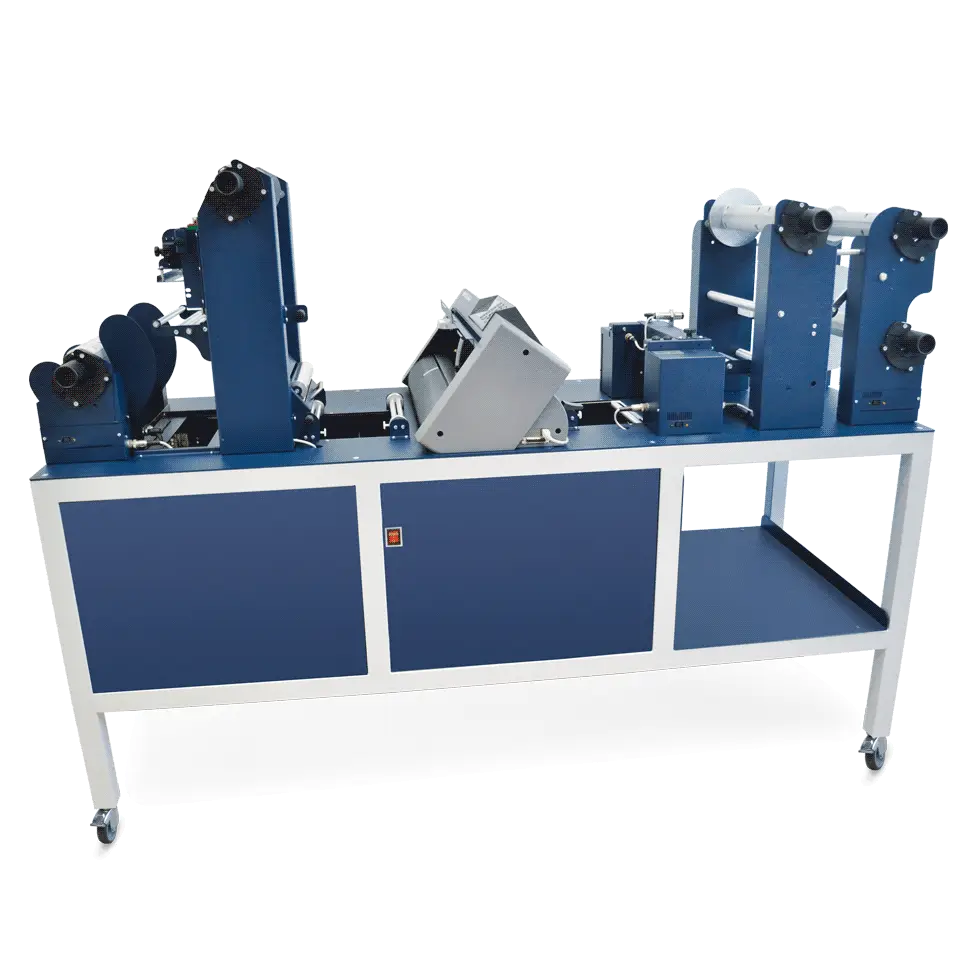

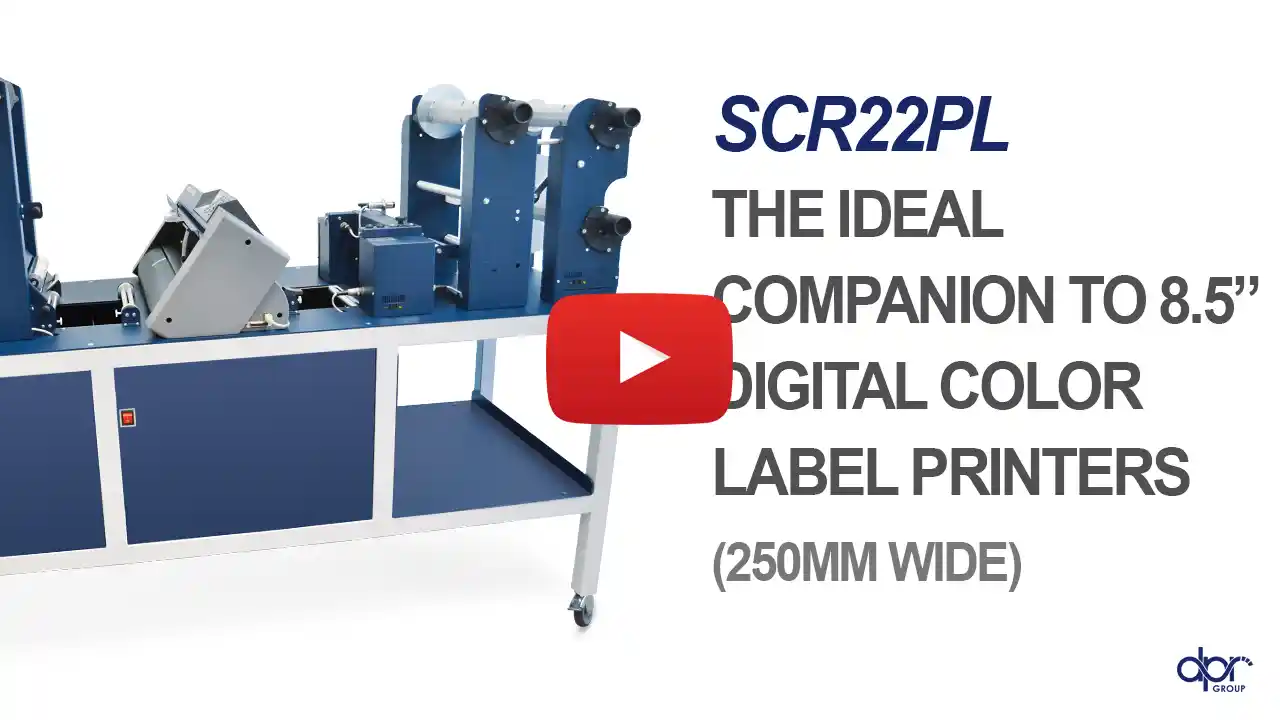

- SCR22PL : The ideal companion to 8.5” digital color label printers.

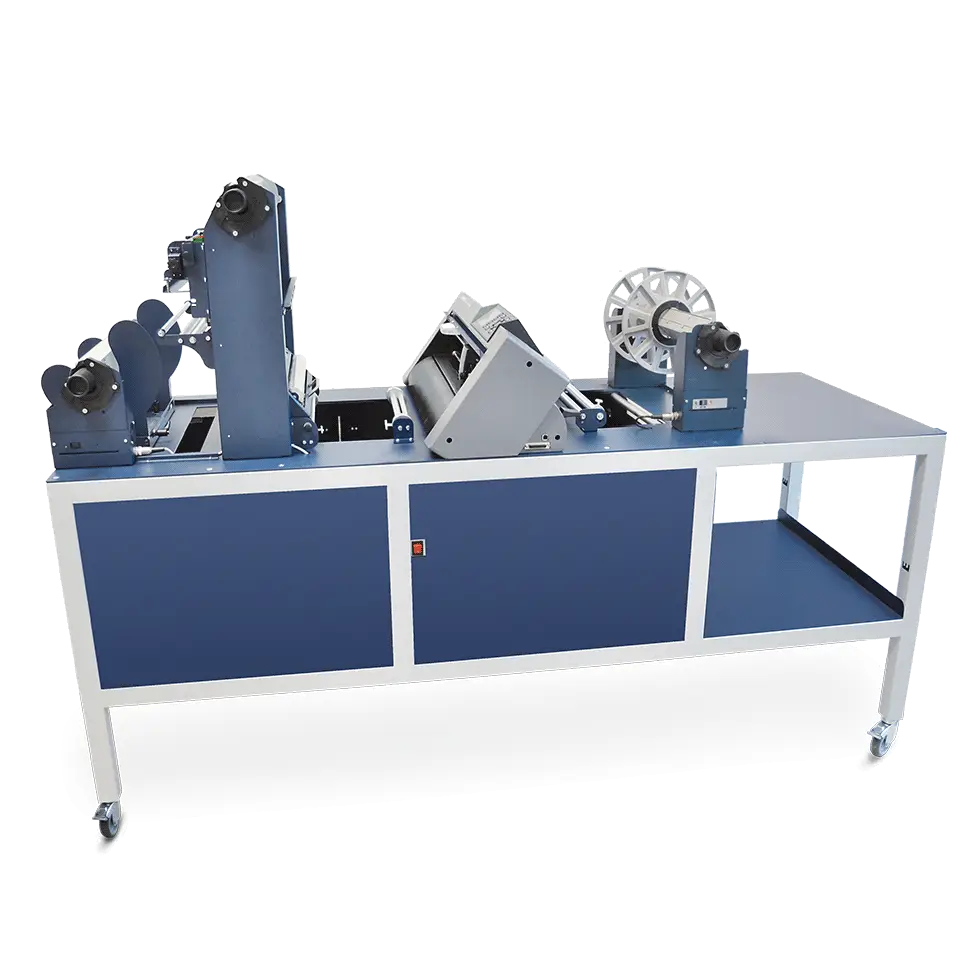

- SCR35 : The finisher for wide-format, with no lamination module.

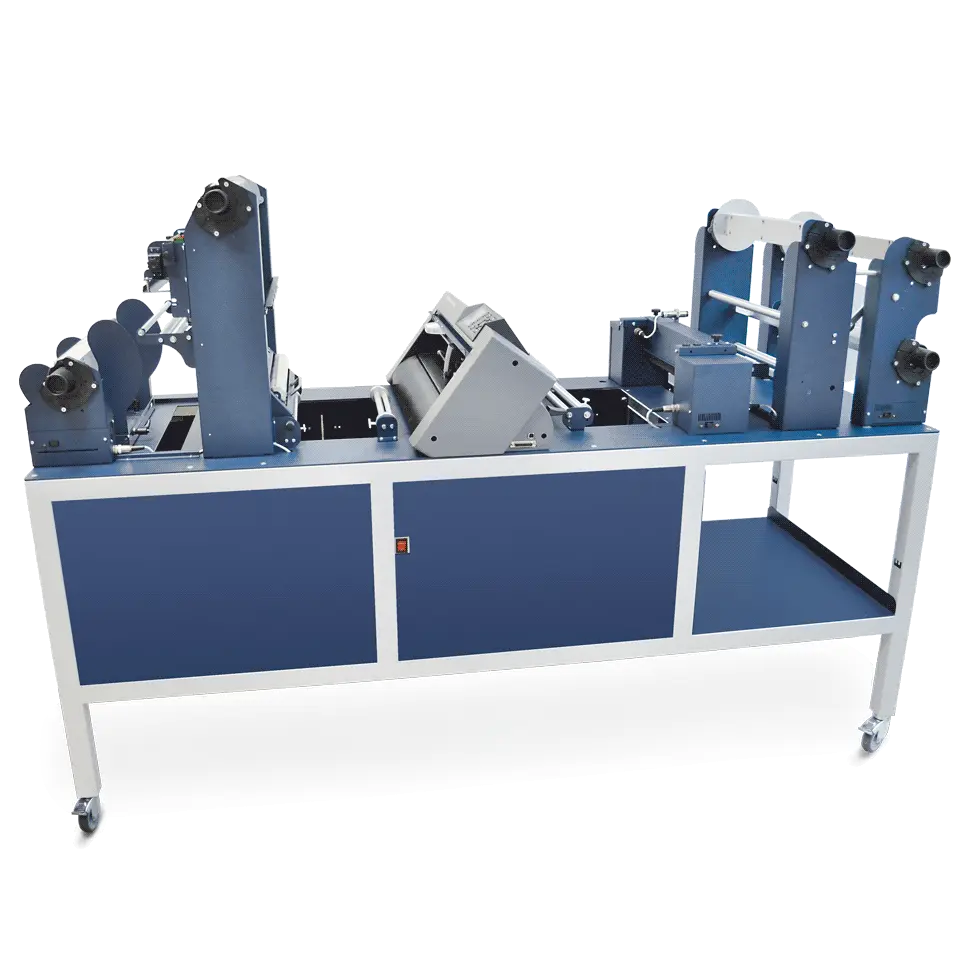

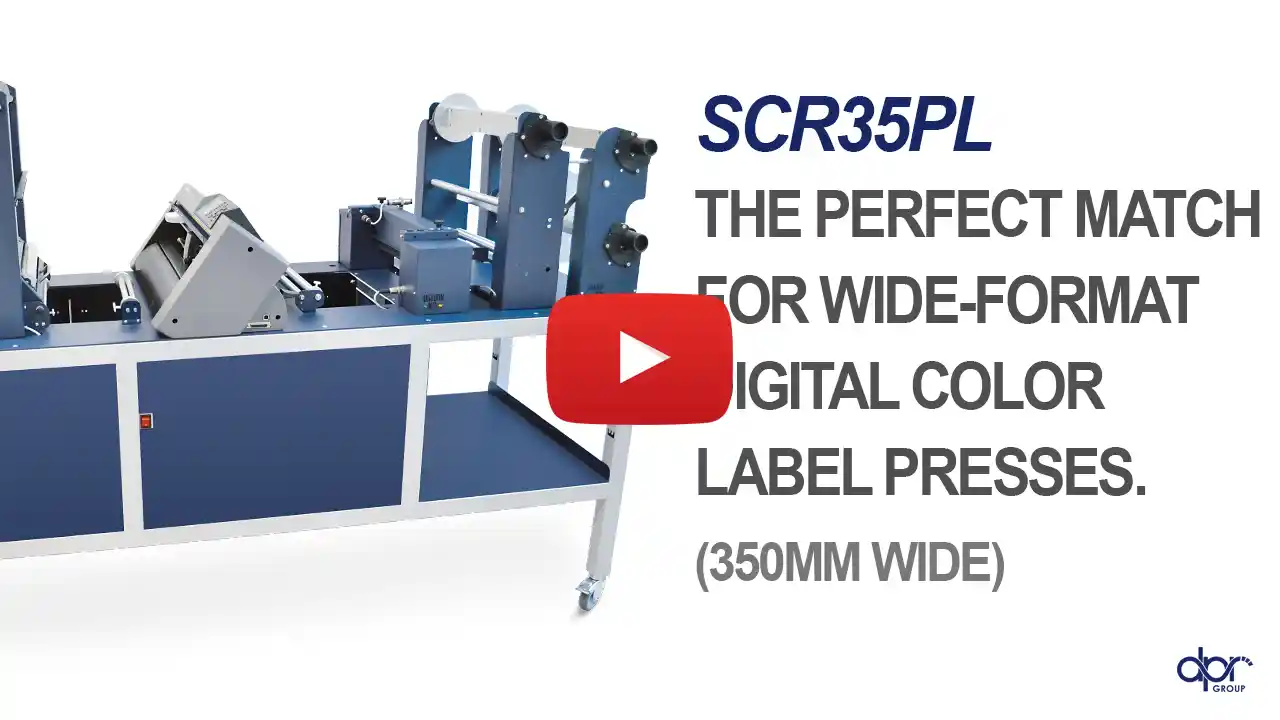

- SCR35PL : The perfect match for wide-format digital color label presses.
Scorpio software:
Scorpio software works together with a camera forming an integrated optical black-mark registration system. Through the software, the operator imports the cutting file from Adobe Illustrator, inkscape or Corel Draw and creates a black-markinside the cutting file.
The camera detects the black-mark printed on the media and the software matches it with the black-mark created inside the cutting file. This process synchronizes when and where starting the job.
Brochure | User Manual REV.05|
-
-

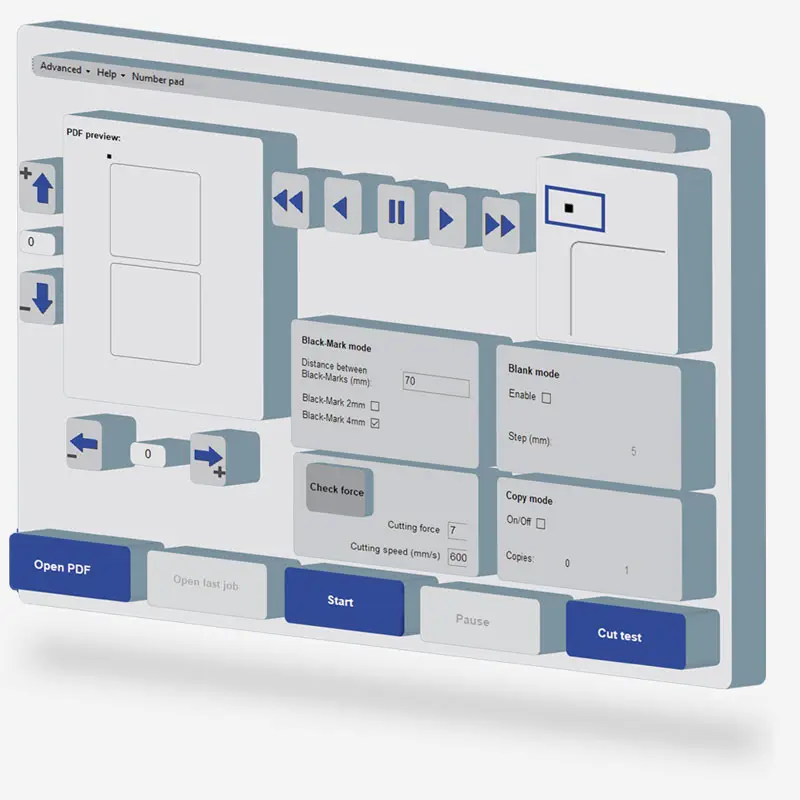

SCORPIO cutting Manager
Scorpio software works together with a camera forming an integrated optical black-mark registration system.
With this software, the operator can import the cutting files created on Adobe Illustrator, Inkscape or Corel Draw which is also used to create the black marker.
The camera equipped on Scorpio assist the software in detecting the black-mark created inside the cutting file. This process tells the plotter when and where to start cutting the media.
| Optical Sensing | Scorpio series use a camera forming an integrated optical black-mark registration system allowing to read one black-mark for each cutting layout. Optimizing cutting speed. No synchronization issues. |

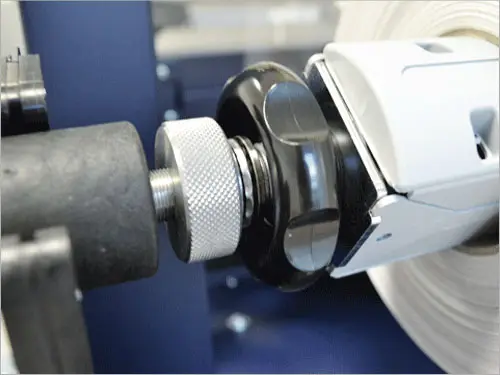

| Adjustable Clutch | This feature allows to obtain flat tight finished rolls and waste material neatly rewound. |
| Size Does Matter | Scorpio series size help operators have more room to easily and quickly load the media and get the machine ready to work in a few minutes. |

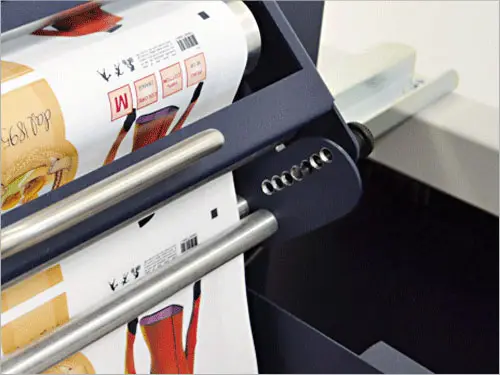

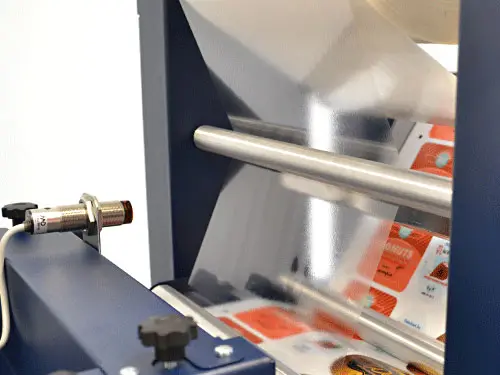

| Media Track | Scorpio series are equipped with an ultrasonic sensor system that generates a loop of media both in plotter input and output in order to guarantee a smooth media track during the cutting operations. |

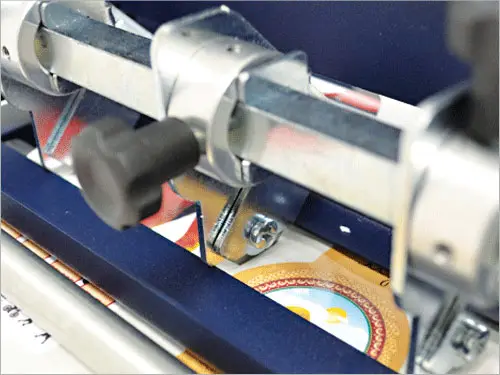

| Slitter Blades | Scorpio series are equipped with inexpensive multi edge blades. Blade life extended 4 times as much. |
| Blank Labels | Scorpio seires can cut blank labels. Through the Scorpio software, operators only need to set label step. No printed black-mark required on the media. |
| Software | Scorpio series proprietary software can be installed on any computer running Windows 8.1 or later. Not supported by macOS systems. |
| Media | Scorpio series allow to use any media from 101,6 mm (4”) up to 350mm (13.77") |

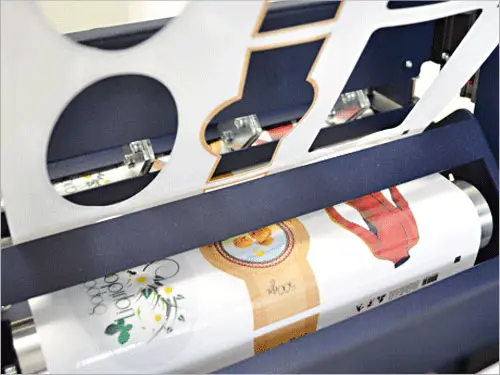

| Matrix Rewinding | Scorpio series feature synchronized Motorized Core Holders that avoid any matrix tear while removing and rewinding. |
| Easy To Move | Scorpio series are equipped with four wheels that allow to easily move the machine. |
| Remote Assistance | Customers whose computers are connected to internet can be reached by one of our operators for remote assistance and firmware upgrades. |
| All trademarks and copyrights are the property of their respective owners. | |
|---|---|
| SCR22 | SCR22PL | SCR35 | SCR35PL | |
|---|---|---|---|---|
 |
 |
 |
 |
|
| Input / Output Roll Diameter | 250mm (9.84”) | 250mm (9.84”) | 250mm (9.84”) | 250mm (9.84”) |
| Minimum Web Width | 108mm (4.25”)) | 108mm (4.25”) | 108mm (4.25”) | 108mm (4.25”) |
| Maximum Web Width | 225mm (8.86”) | 225mm (8.86”) | 350mm (13.77") | 350mm (13.77") |
| Maximum Cutting Width | 200mm (7.87”) | 200mm (7.87”) | 330mm (13”) | 330mm (13”) |
| Minimum Slitting Width | 19mm (0.75”) | 19mm (0.75”) | 19mm (0.75”) | 19mm (0.75”) |
| Minimum Label Length | 10mm (0.39”) | 10mm (0.39”) | 10mm (0.39”) | 10mm (0.39”) |
| Maximum Label Length | 450mm (17.71”) | 450mm (17.71”) | 450mm (17.71”) | 450mm (17.71”) |
| Lamination Module | NO | YES | NO | YES |
| Number of Slitting Blades | up to 8 | up to 8 | up to 12 | up to 12 |
| Maximum Media Thickness | 0.25mm (10 mil) | |||
| Maximum Cutting Speed | 600mm/s (24 in/s) in all directions | |||
| Roll Core Size | 76mm (3”) | |||
| Agency Certifications | CE, FCC, RoHS | |||
| Warranty | One Year Parts and Labor. Usage Limitation may apply | |||
