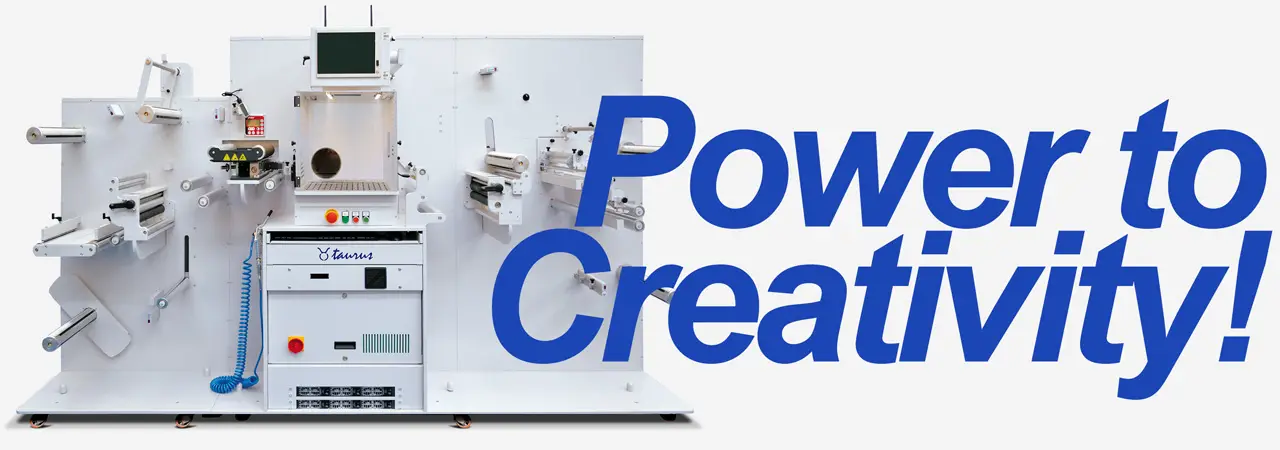

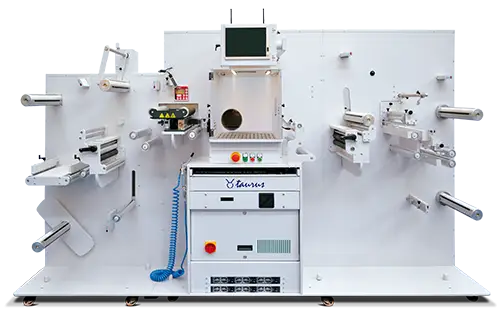

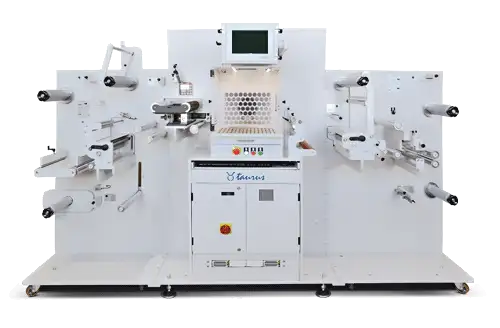

No die tool anymore with Taurus, it is roll to roll digital converting solution powered by a Galvo system technology and equipped with a sealed C02 laser source to finish printed jobs at incredible cutting quality and speed.
Developed on 3 axes scanner and the latest in laser technology, this unit offers a better X and Y register and cut depth control (Z) allowing the user to cut with different power levels on the same labels.
This means an increase in quality and precision of label edges and a higher flexibility in label design supporting multiple laser processes and the laser beam will kiss-cut, slit and perforare most materials used in the label industry.
Working digitally means deliver your jobs just on demand and thanks to the smart features and high speed offered by Taurus the job size, path complexity and work execution of your finished labels will not be a limitation anymore.

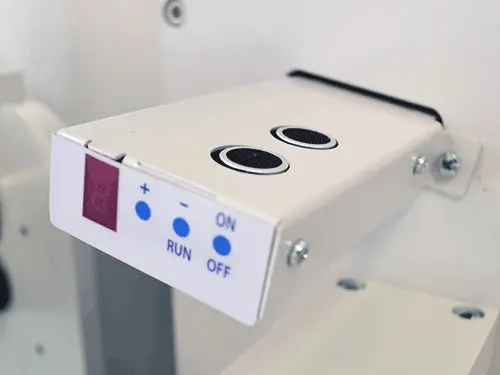

ULTRA SONIC TENSION CONTROL
Each core is managed by its own tension media control to keep adjusted automatically the media tension on the roll regardless its diameter.
- Running a label production in-house means reducing inventory requirements and costs.
- Producing full bleed labels will no longer be a nightmare.

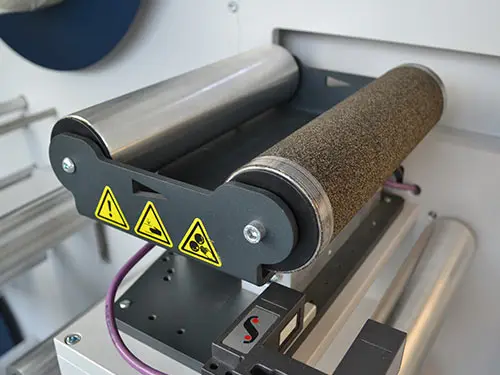

- Laminating adds durability to your labels with no need for special media.
- No need to order pre-die cut label rolls.
- No need to order die tools.
- A quick and simple solution for labels on demand.
Quick Running Process
Extremely user-friendly, loading of saved jobs will take a few seconds and new ones will be just a question of minutes. Thanks to an efficient setup process, the system meets the challenges of small runs and short lead time, thus ensuring “labels on demand” delivery time.
Based on fully digital workflow, the laser process eliminates both the cost of buying conventional die plates and downtime for setups of mechanical dies.
Flexibility & Quality
Equipped with the latest laser technology, it gives great flexibility in label design and increase in cutting precision.
Depending on the complexity of the artwork, the unit gives the operator the option between “cut on fly” and “start & stop” modes which will help increase work productivity.
Customers whose computers are connected to internet will have access to our knowledgeable support technicians through remote assistance, making it convenient to troubleshooting and resolve any issues.
|Input Roll Diameter||up to 500m (19.68”)||up to 500m (19.68”)|
|Cutting area||250mm x 250mm
(9.84” x 9.84”)
|330mm x 330mm
(13 ”x 13”)
|Web Width||50mm - 250mm
(1.96” - 9.84”)
|50mm - 350mm
(1.96” - 13.78”)
|Laser Spot Size||up to 250 μm||up to 350 μm|
|Laser Source Power||150W - 10.25 μm||350W - 10.25 μm|
|Power Requirement||220Vac 18A 4000W||220Vac 34A 7500W|
|Laser Type||Single Head C02|
|Type of cut||kiss-cut, full cut, perforation, engraving|
|Media type allowed||Paper, Plastic Films except PET|
Up to 30 m/min depending on laser power, cut pattern and material being used this finisher offers unwinding, laminating, digital cutting, waste removing, rewinding and length slitting in a single pass.
Type of cut: Kiss-cut, Full cut, Perforation, Engraving
Media type allowed: Paper, Plastic Films except PET

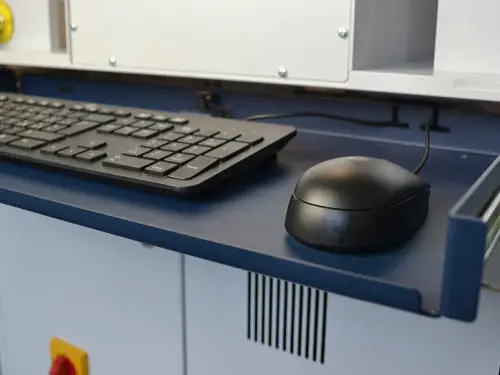

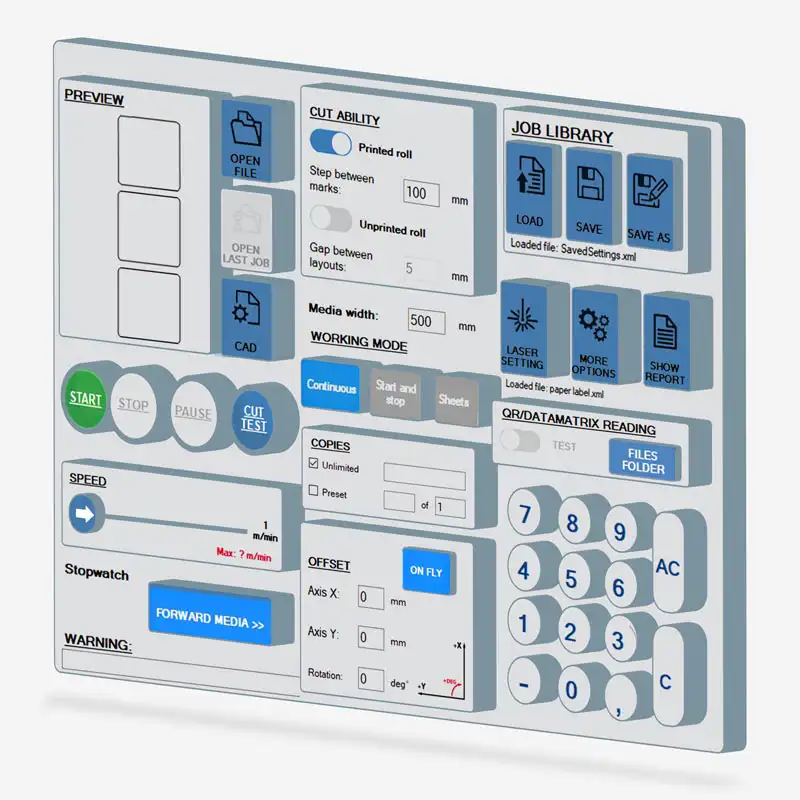

CUTTING MANAGER SOFTWARE.
An innovative and smart cutting management software allows the operator to easily adjust the work speed and laser output for fabulous cutting, time optimization and less materials waste which in turn = greater profits.
The User friendly management software for Windows is compatible with Adobe PDF files.

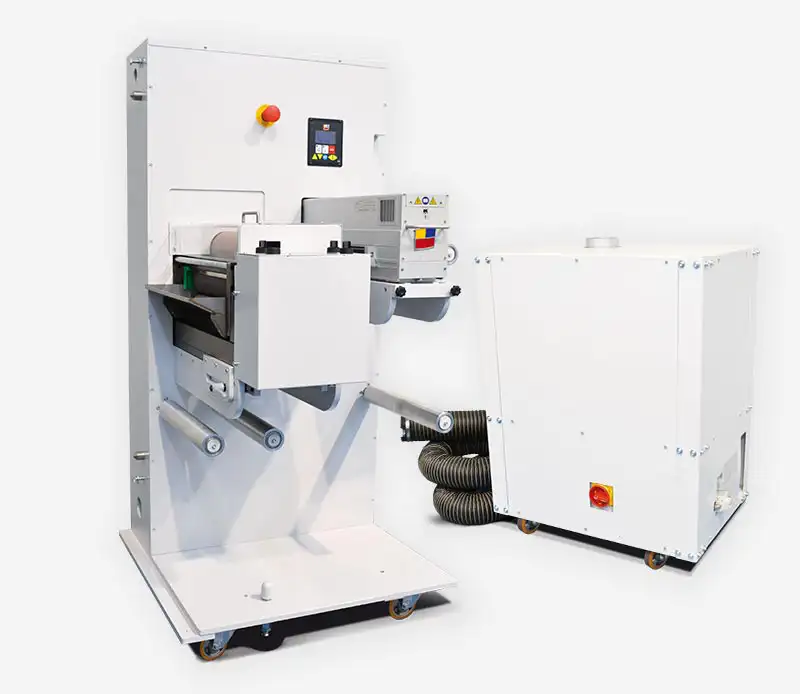

UV VARNISH MODULE.
Do your paper labels get damaged over time?
Do you want to make them close to being indestructible?
With the cold lamination you see some ugly imperfections on your labels?
With the new UV Varnish module for our laser finishing systems TAURUS, you will FIX this and other problems that could destroy your labels.
Easy to install, practical to use, and it will eliminate the annoying and noisy problem of using foils.
ECO-FRIENDLY AND ENERGY EFFICIENT.
Taurus is eco-friendly and energy efficient.
The unit has an adaptor located on the back to giving the operator an option to connect a fume extractor.
The air flow system prevents any material from burning and keeps the working area clean.
Taurus unit also has a build-in chiller. This water cooling system helps with monitoring and regulating the laser source temperature.
