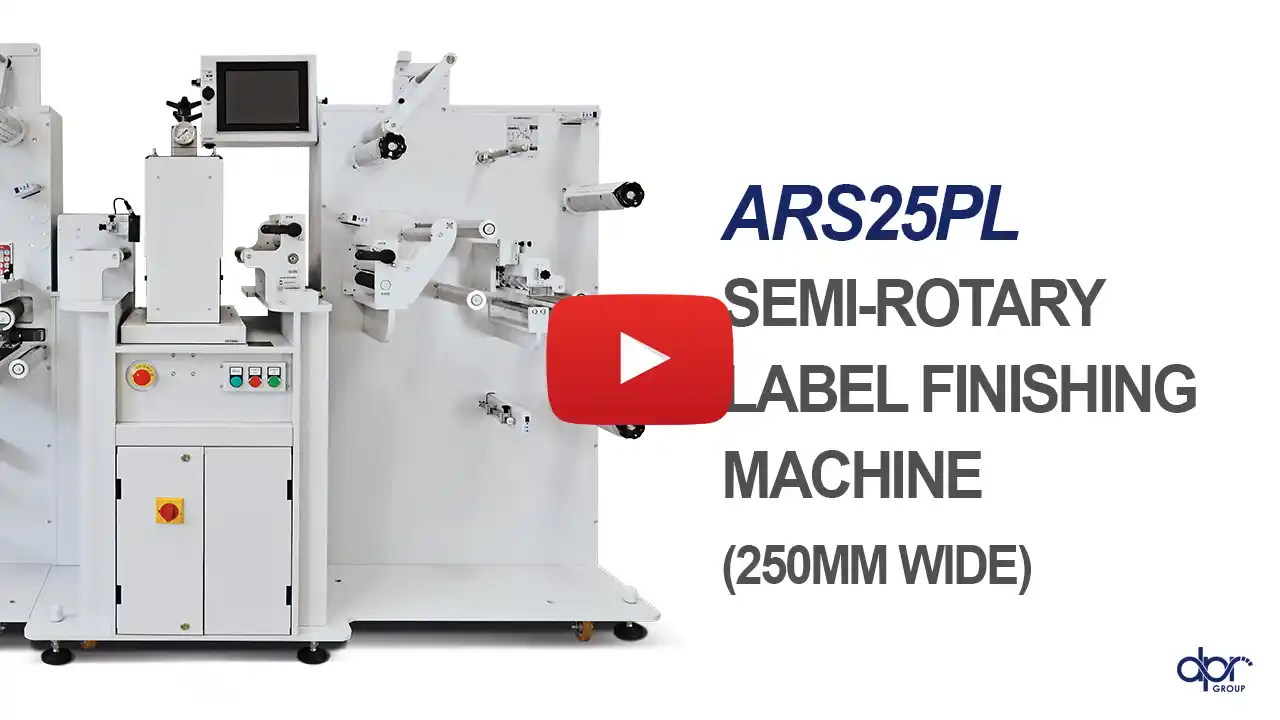

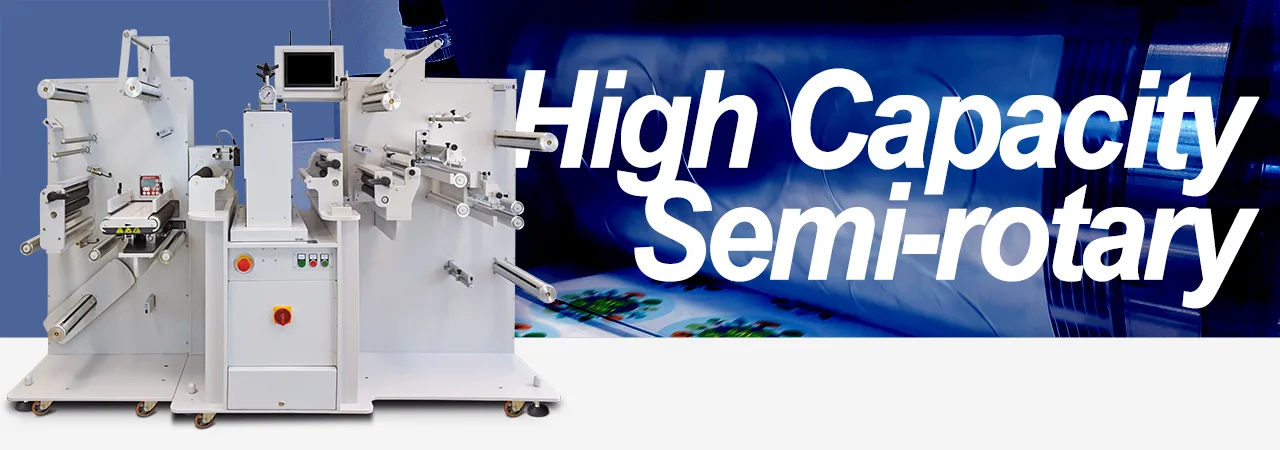

Aries is an offline system designed to die cut and finish labels up to 20 m/minute. Equipped with a solid rotary module installed on a 15mm aluminum frame, it eliminates vibrations during the web driving while producing labels at lightning speeds!
In a single pass this finishing machine is capable of laminating, die cutting, waste removal, slitting and rewinding finished labels onto new rolls that are ready for application.
The rotary module offers a magnetic cylinder equipped with four thorns used to quickly swap and easily align the flexible steel dies, while the whole module is moved electronically to provide an accurate offset adjustment.

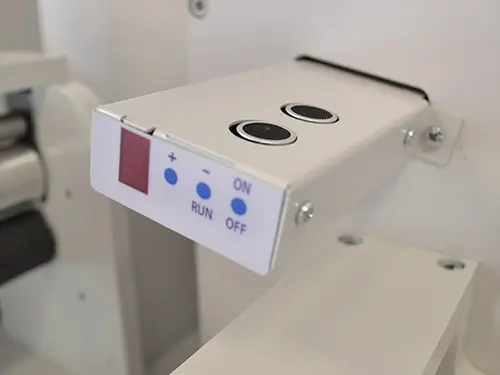

ULTRA SONIC TENSION CONTROL
Each core is managed by its own tension media control to keep adjusted automatically the media tension on the roll regardless its diameter.
- Printed & Unprinted media mode
- Industrial production volumes
- Optimal for short / medium / long runs
- Producing full bleed labels will no longer be a nightmare.
- Laminating adds durability to your labels and eliminates the need for special media.

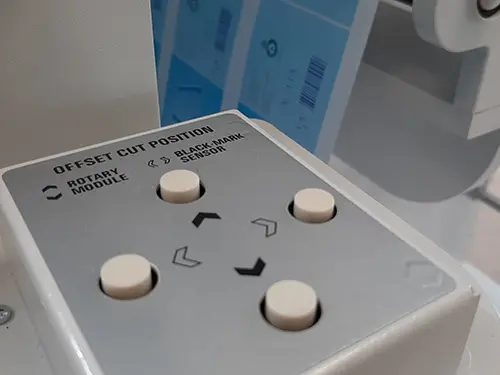

Quick and easy system to adjust the cut over the printed artwork.

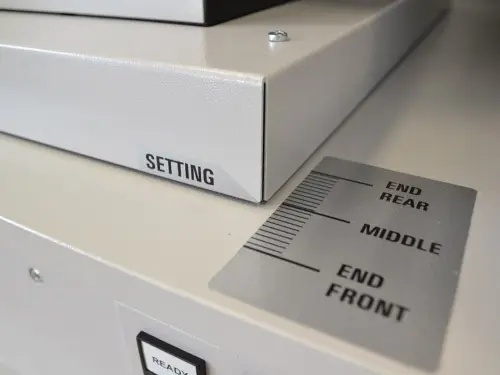

As standard, the unit features a web guide to guarantee the media path straight through the unit.

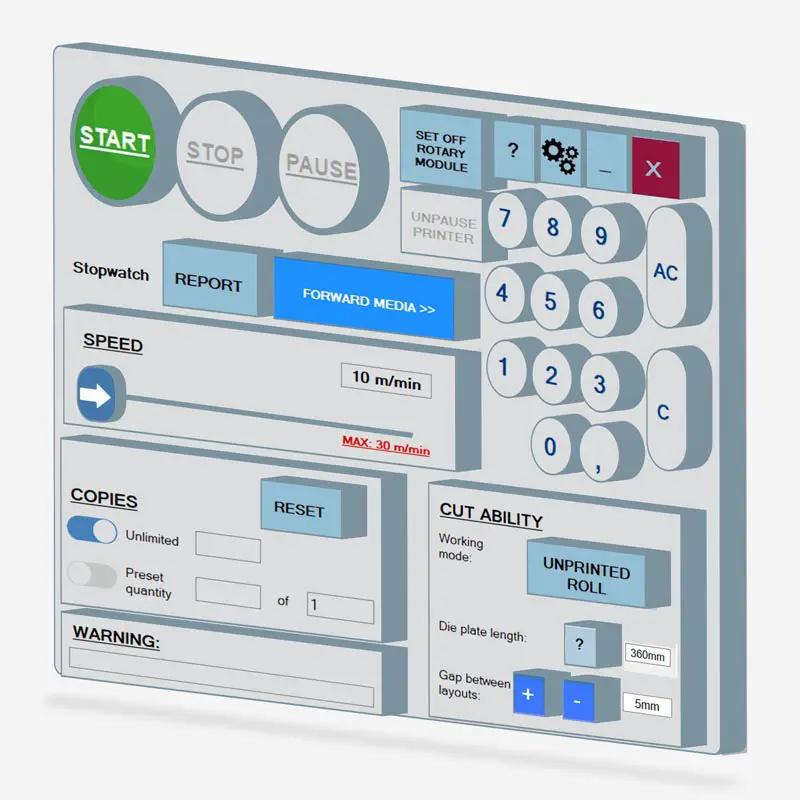

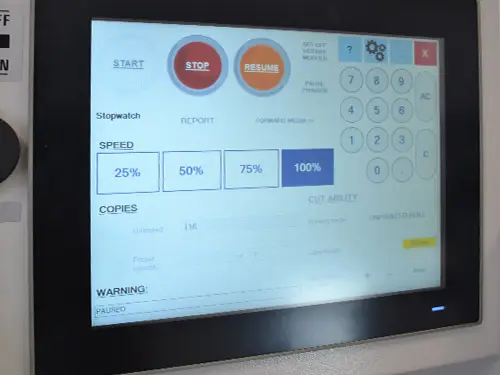

Depending on the complexity of the artwork, the unit gives the operator the option between “cut on fly” and “start & stop” modes which will help increase work productivity.
Customers whose computers are connected to internet will have access to our knowledgeable support technicians through remote assistance, making it convenient to troubleshooting and resolve any issues.
No material limitless
|Semi-Rotary Speed||Up to 20m/min (speed may vary depending the die length)|
|Web Width||Up to 250mm (10”)|
|Media Capacity||Outside diameter 460mm (18.11") on a 3" core | (approx. 1000 meters in length)|
|Laminate||Economical, self-wound and supported laminate (on a liner).|
|Die Head Lateral adjustment||+/- 60mm|
|Max. Diecutting Width||230mm (9")|
|Max. Diecutting Length||360mm (14.17")|
|Cutting Dies||Flexible steel, from 130mm (5.11") to 360mm (14.17")|
|Max. Finished Label Rewind||400mm (15.74")|
|Max. Waste Matrix Rewind||300mm (11.8")|

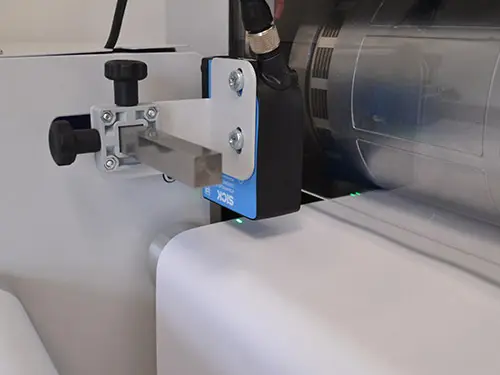

|Registration Sensor / Mark||Laser / 4mm x 4mm (0.16" x 0.16")|
